ceramic filter membrane

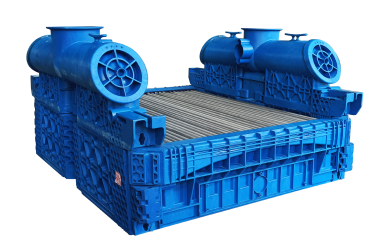

Aluminum oxide tubular ceramic film, silicon carbide tubular ceramic film, silicon carbide plate ceramic film, silicon carbide ceramic module

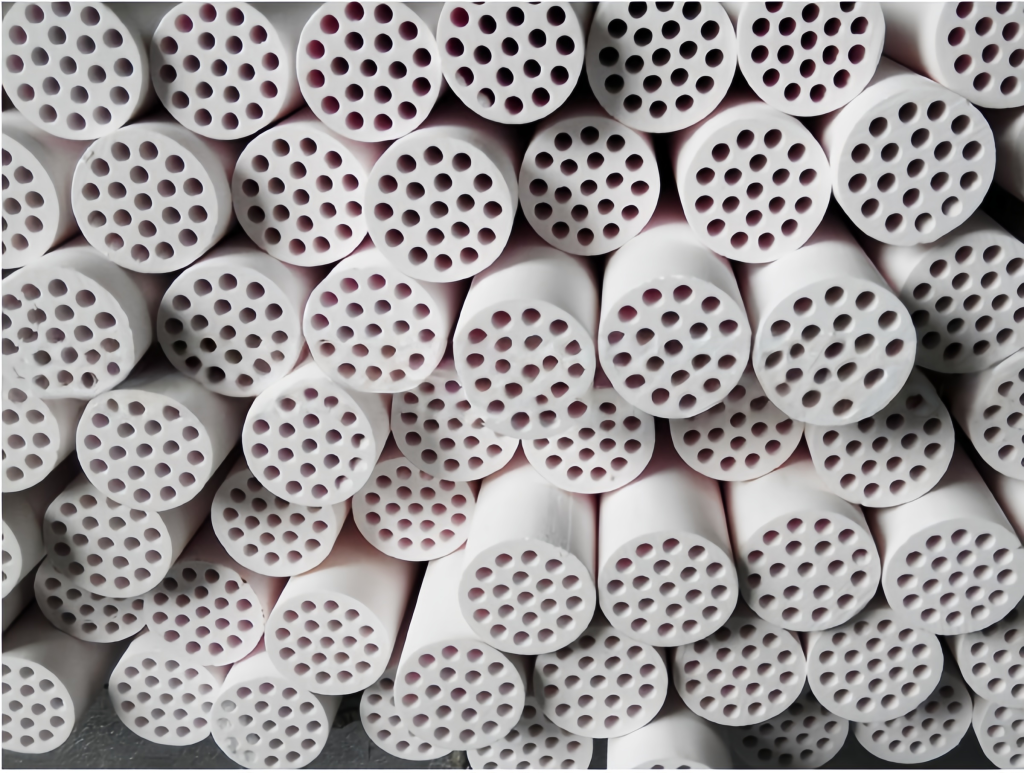

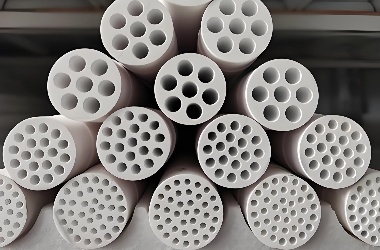

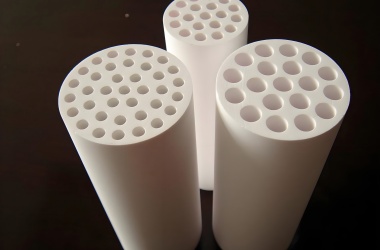

Aluminum oxide ceramic film

Aluminum oxide ceramic membrane is a porous precision ceramic filtration material prepared by special processes using materials such as alumina, titanium oxide, zirconia, etc. The filtration accuracy covers three levels: microfiltration (0.05 μ m-1.5 μ m), ultrafiltration (0.01 μ m-0.05 μ m), and even nanofiltration (<1nm).

specifications：

1、Pore size of filter membrane：0.8um、0.2um、50nm、1000Da

2、Work Pressure ：1.0Mpa

3、Work Temperature:-10-150℃

4、Corrosion Resistance：Adapt to both acid and alkali

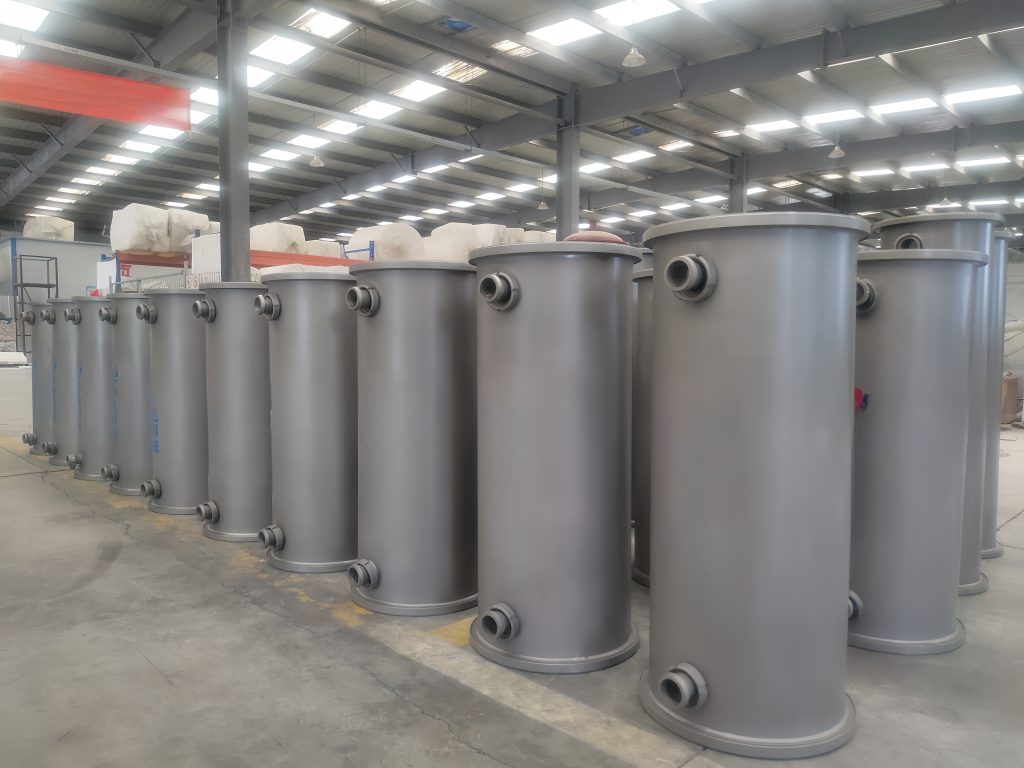

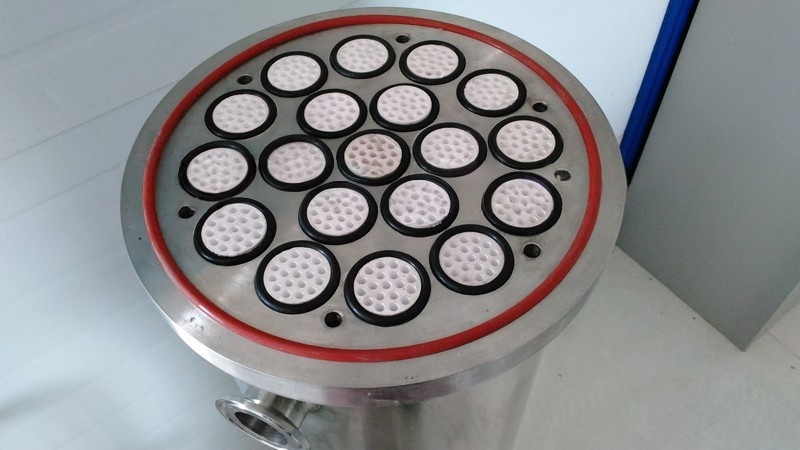

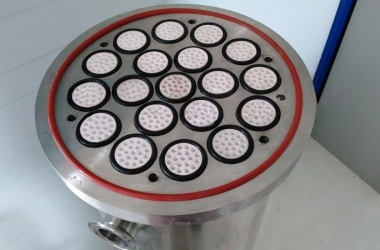

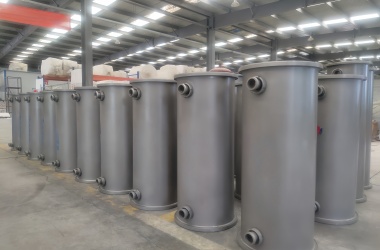

Tube type ceramic membrane filtration component

Design metal shells of different specifications according to customer needs, and fill them with corresponding ceramic membranes to achieve ceramic membrane assemblies with different outer diameters and areas. The filling area of a single membrane module ranges from 0.02 square meters to 22 square meters.

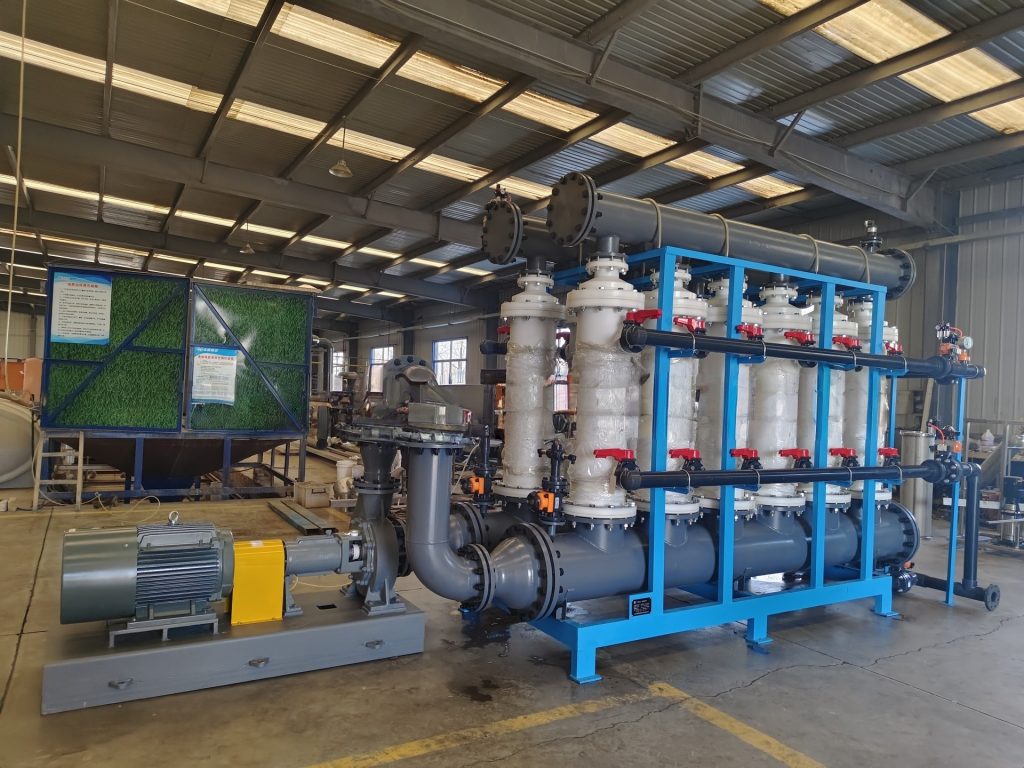

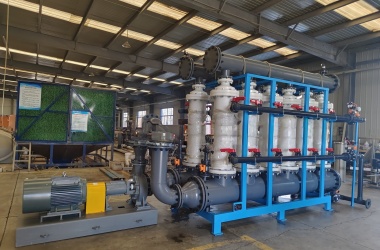

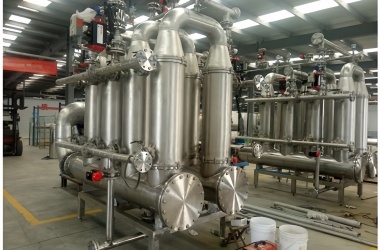

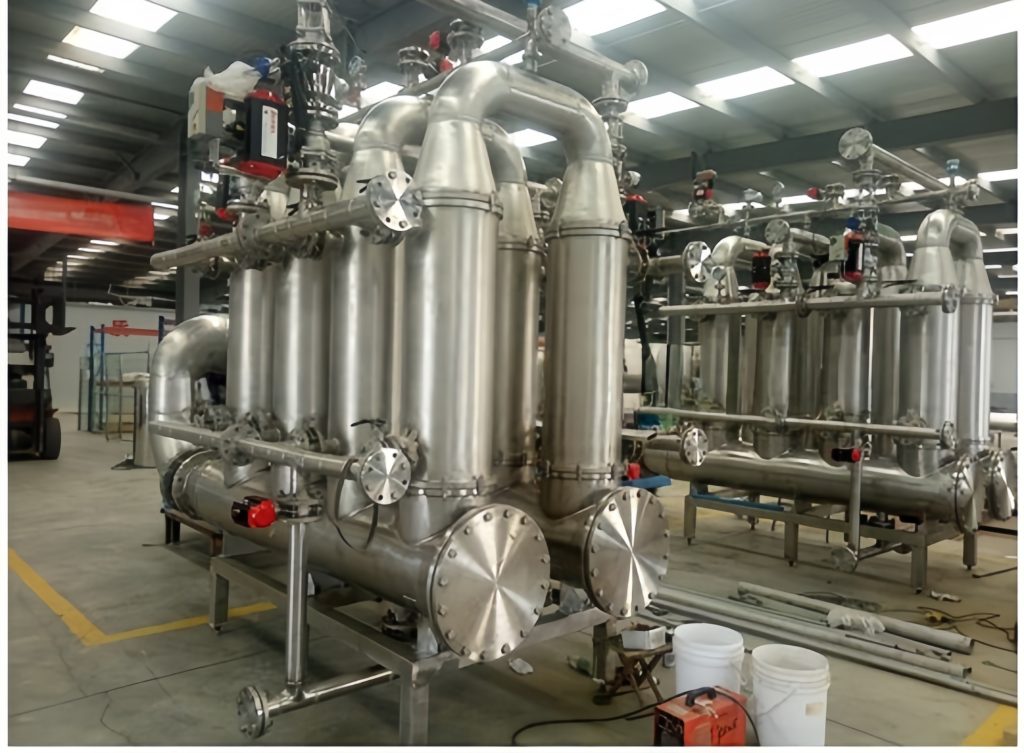

Alumina tube membrane ceramic membrane filter

Ceramic membrane filter is a precision super filtration and purification equipment. Its core component is an alumina ceramic filter membrane, which has excellent thermal stability, high strength, chemical corrosion resistance, easy cleaning, simple regeneration, and long service life. Skid mounted integrated equipment is widely used in fields such as biopharmaceuticals, fine chemicals, food and beverage, sewage treatment, and high-end drinking water.

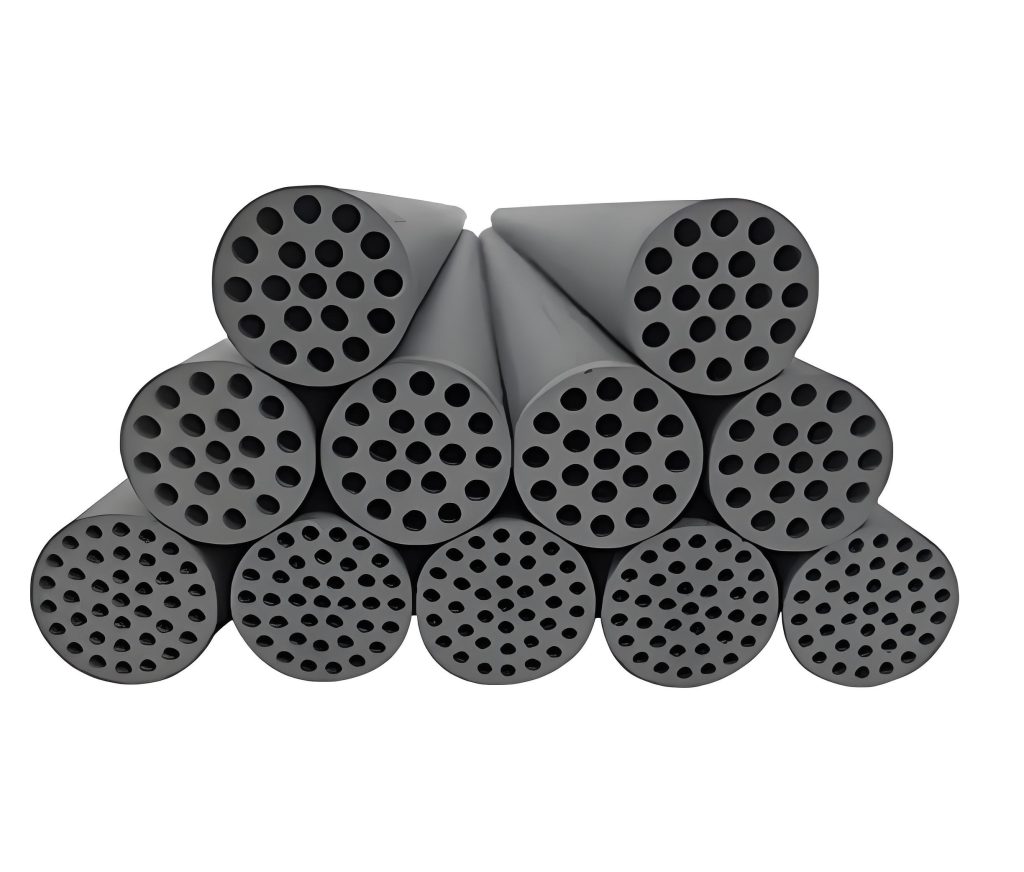

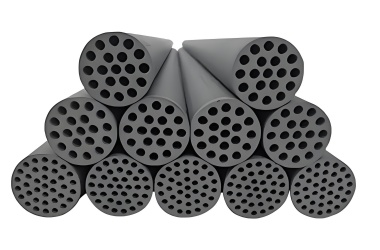

Silicon carbide tubular ceramic membrane

Silicon carbide ceramic membrane (SIC) is a high-precision microfiltration and ultrafiltration grade membrane separation product made from high-purity silicon carbide fine powder through recrystallization sintering technology, which has high flux, corrosion resistance, easy cleaning, and long service life. Currently, the highest filtration accuracy can reach 20 nanometers. It combines inert silicon carbide materials with specially selected non ceramic materials through unique design and manufacturing processes, providing the inherent durability guarantee of ceramic materials. With investment costs comparable to or lower than organic ultrafiltration membranes, it creates more reliable, easier to operate, and longer lasting ultrafiltration products, and achieves the lowest total lifecycle cost over a long period of time.

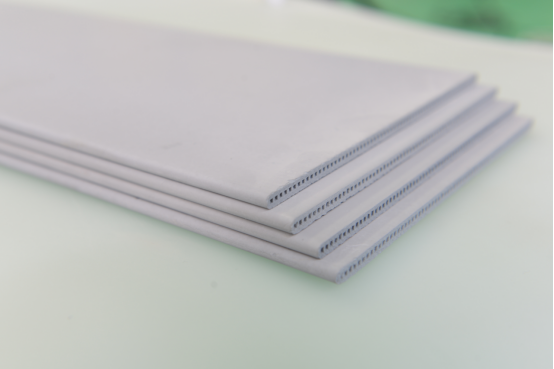

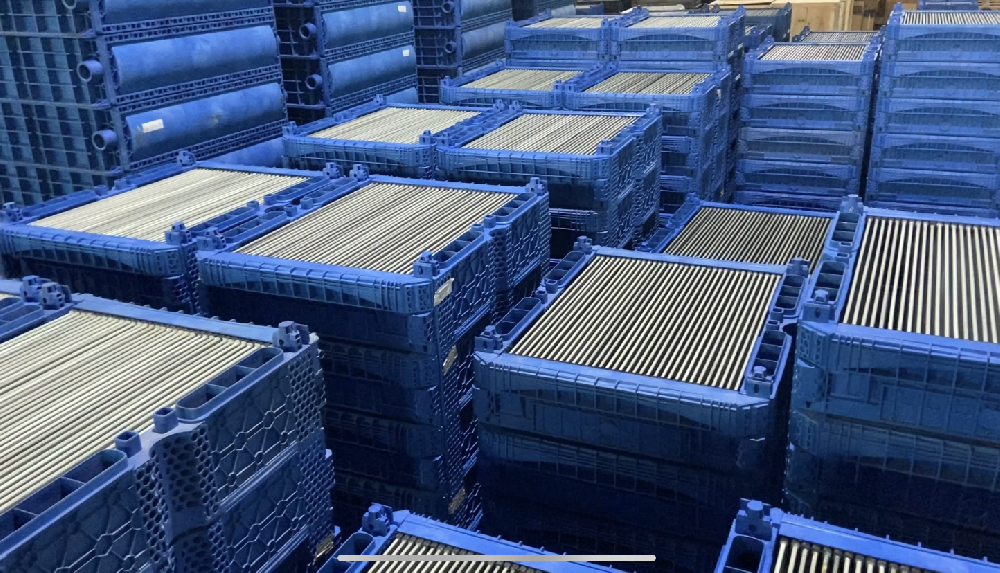

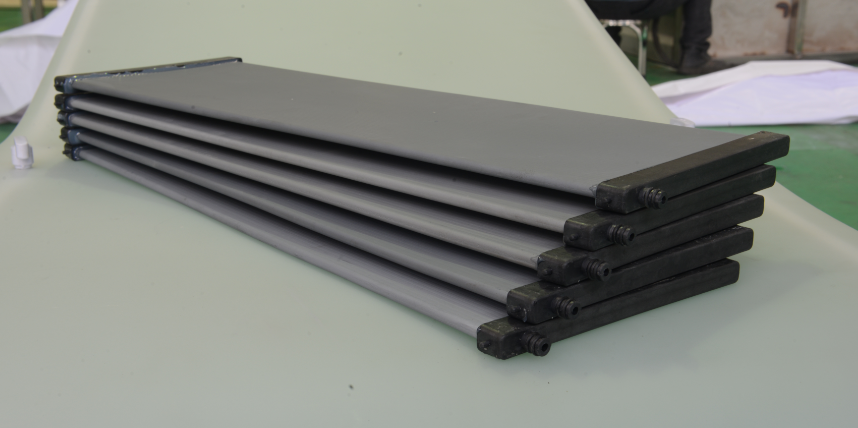

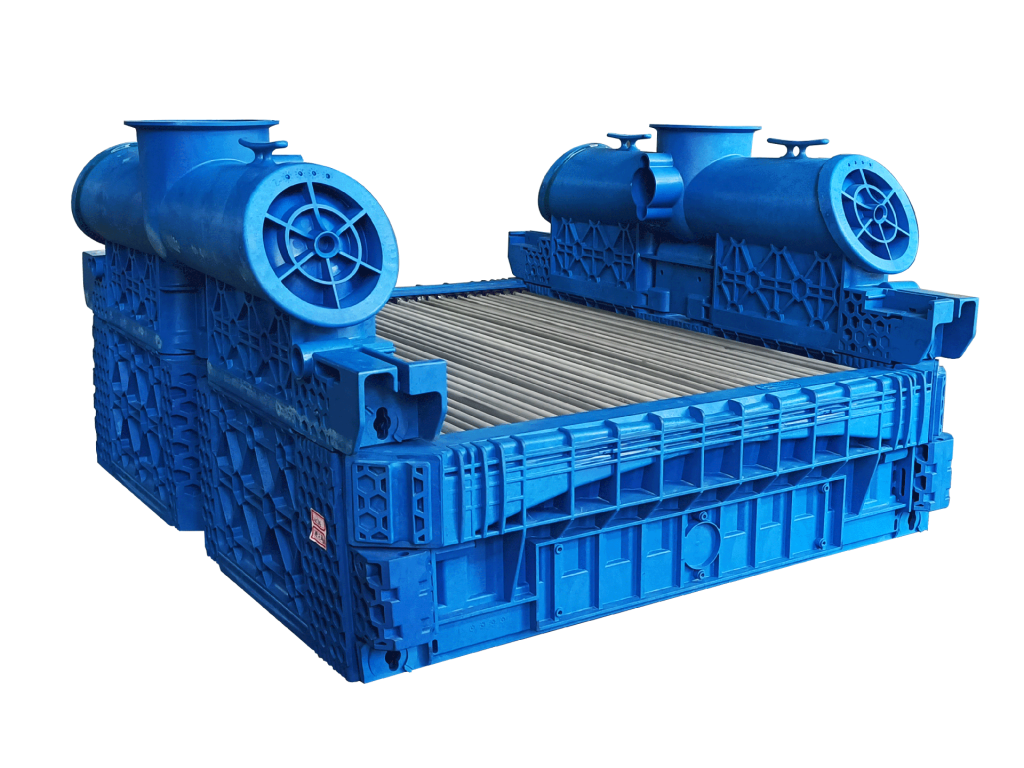

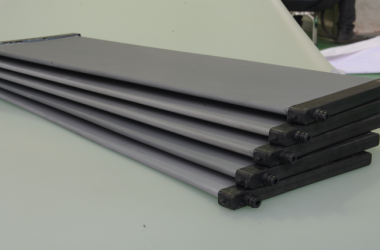

Silicon carbide plate ceramic film

Silicon carbide flat ceramic film is a new configuration of ceramic film, which is also an asymmetric film sintered from 99% pure silicon carbide under high temperature conditions
